VHP Pair/Double [2-/x] Resources

Vespoli Resource Center

everything you need to know about the vhp 2x/-

Footboards

Rigger

Skeg & Steering

Seat

FOOTBOARD ASSEMBLY

VHP23 Foot Stretcher Assembly Drawing

This diagram shows how to assemble the VHP 23 footboard used in all VHP boats starting in 2023.

Backstay Installation (Scull)

Reversible Backstay & Pin Assembly

This diagram shows proper installation of the backstay featured in all scull riggers using stern mounts.

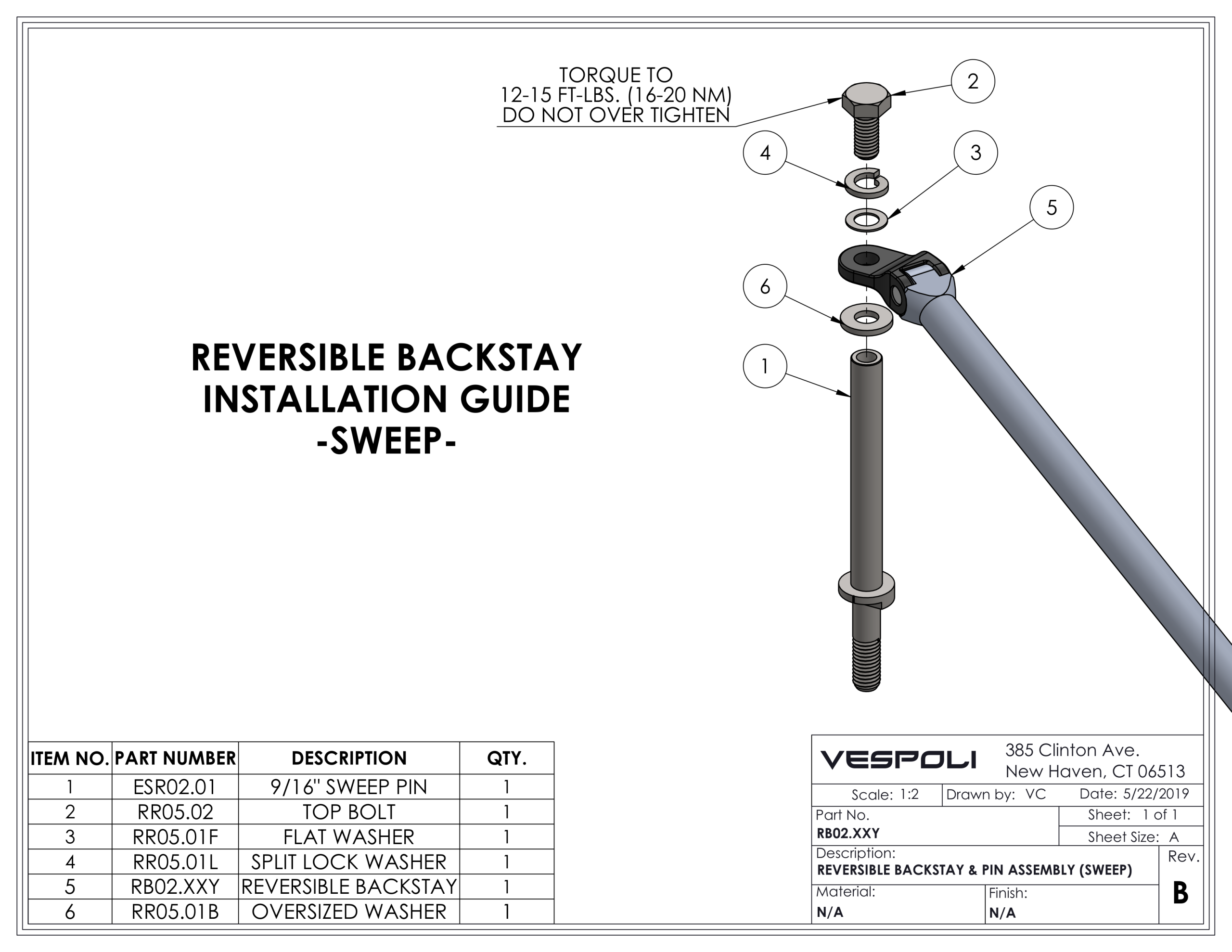

Backstay Installation (Sweep)

Reversible Backstay & Pin Assembly

This diagram shows proper installation of the backstay featured in all sweep riggers using stern mounts.

2-/x Fin & Rudder

Skeg Identification

Skeg Replacement

Above Deck Steering

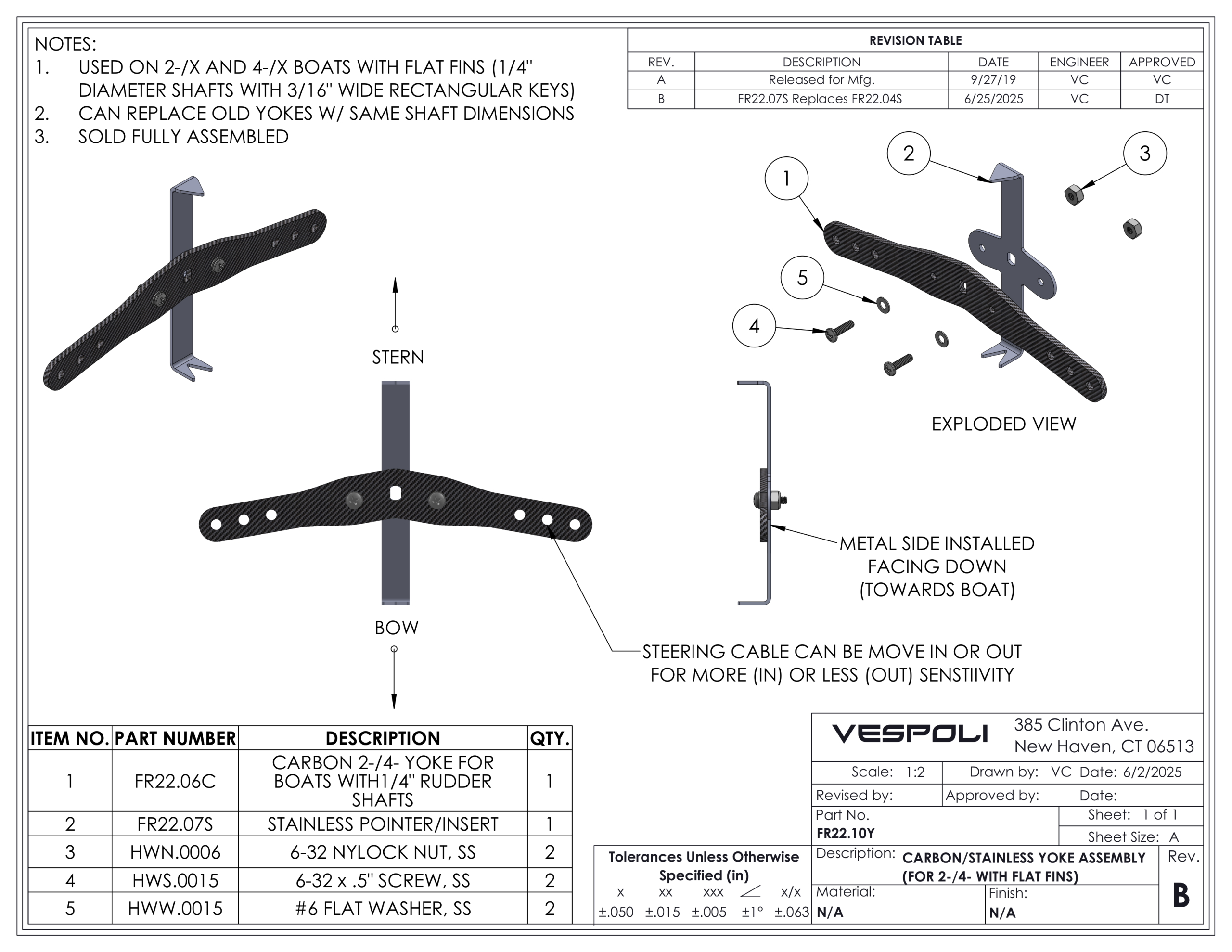

All 2-/x boats up until mid 2019

This diagram shows the parts and orientation of the above deck steering yoke used on VHP 2-/x boats with flat fins and 1/4" diameter shafts. These boats were made until mid 2019.

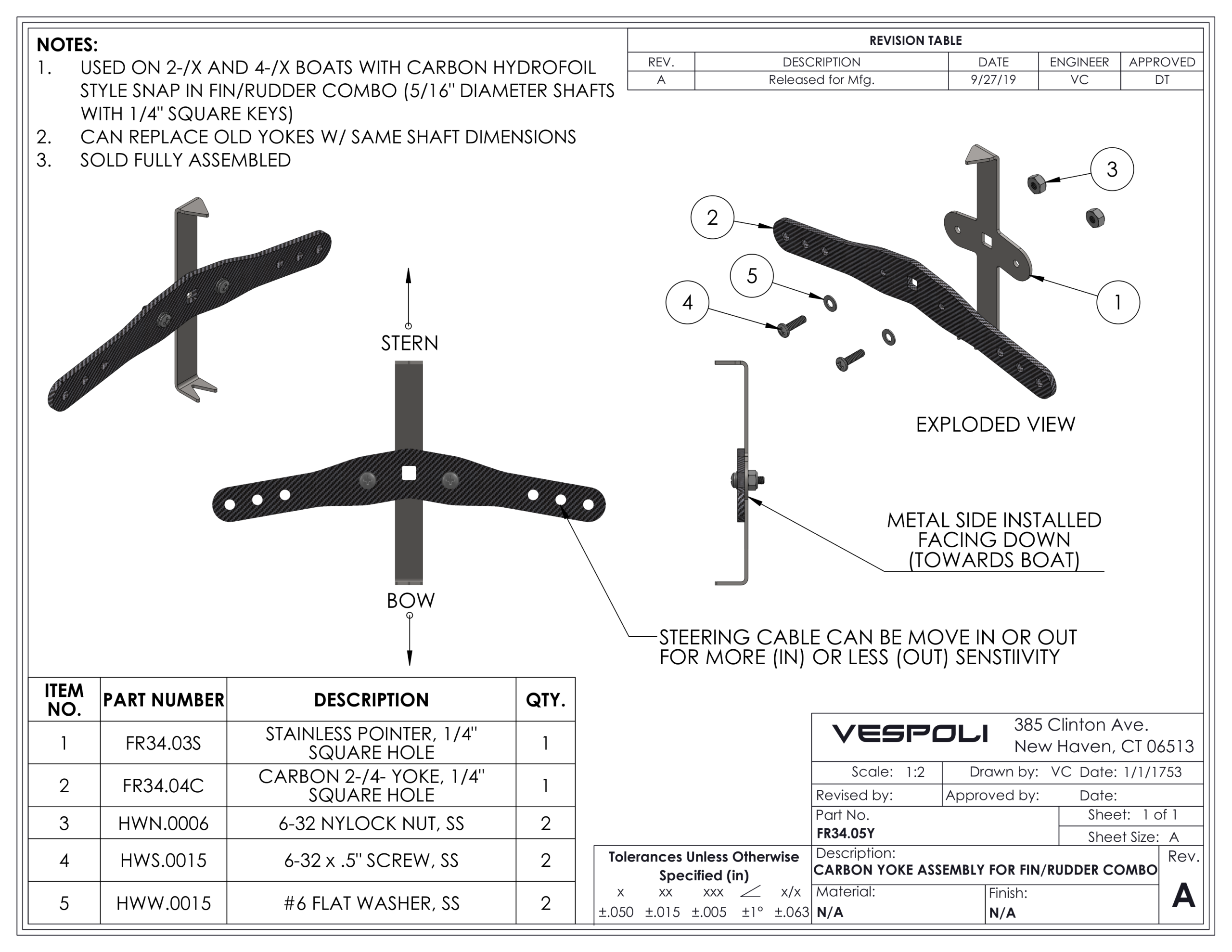

All 2-/x boats after mid 2019

This diagram shows the parts and orientation of the above deck steering yoke used on VHP 2-/x boats with carbon airfoil fins and 5/16" diameter shafts. These boats began production in mid 2019.
