FOOTBOARD ASSEMBLY

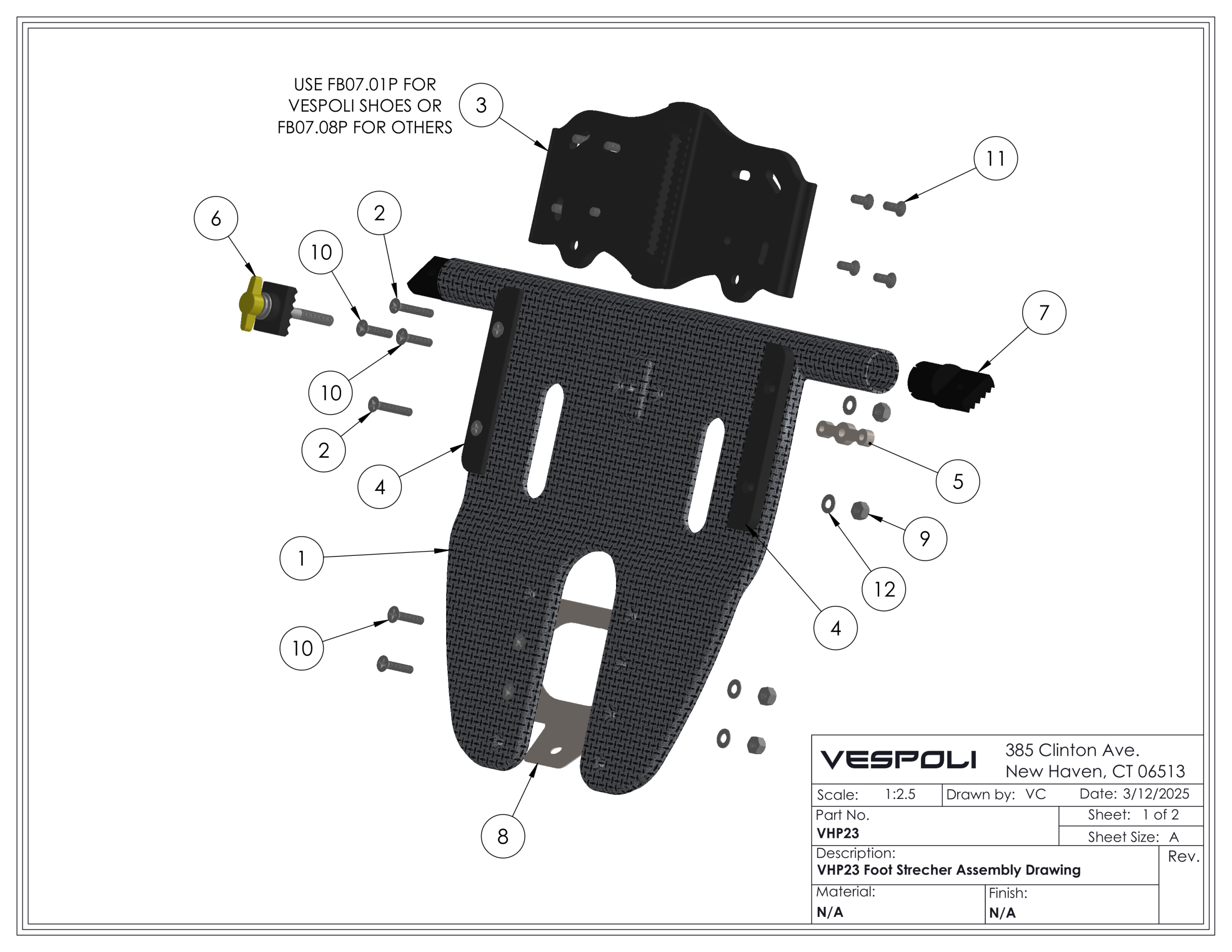

VHP23 Foot Stretcher Assembly Drawing

This diagram shows how to assemble the VHP 23 footboard used in all VHP boats starting in 2023.

footboard assembly before 2023

This diagram shows how to assemble the VHP 23 footboard used in all VHP boats before in 2023.

Backstay Installation (Scull)

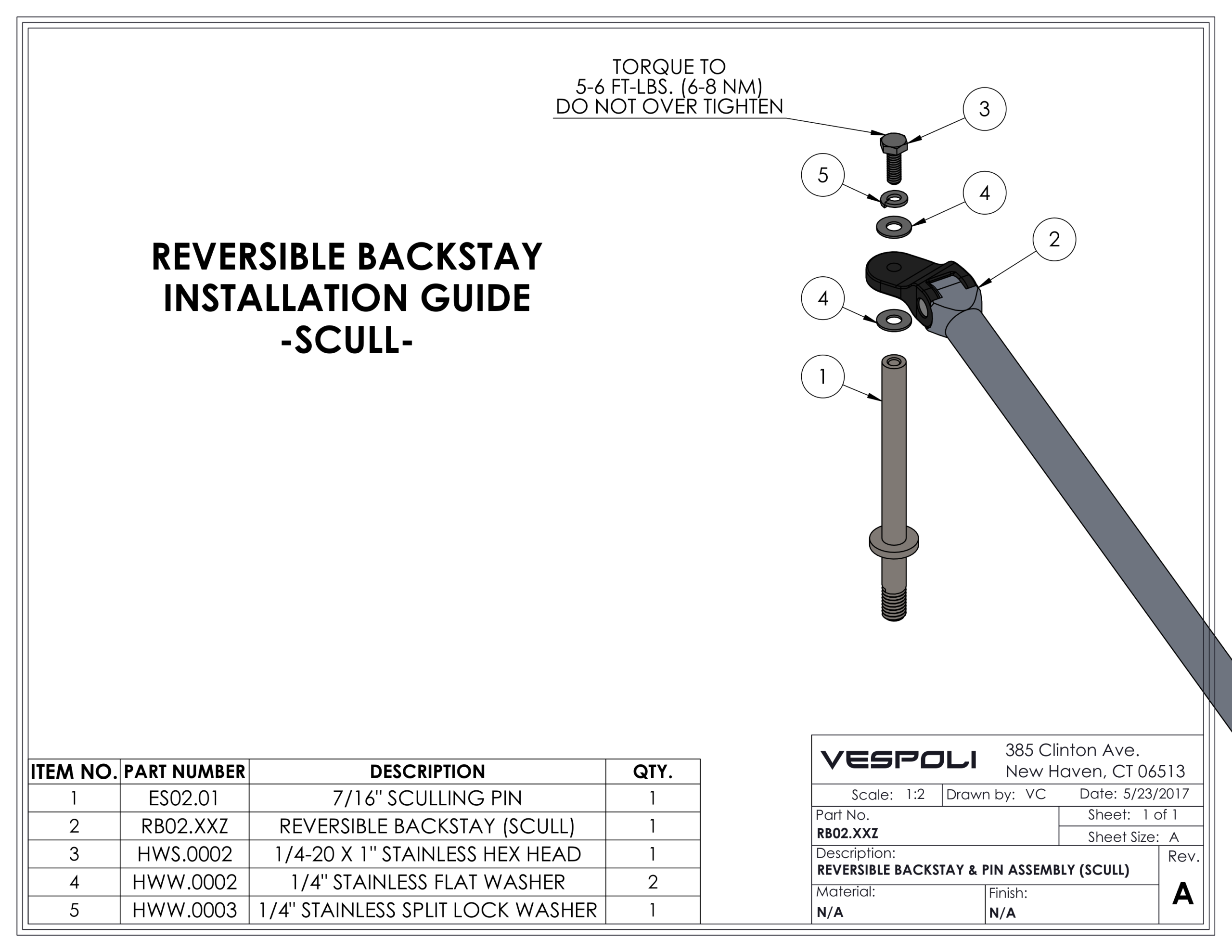

Reversible Backstay & Pin Assembly

This diagram shows proper installation of the backstay featured in all scull riggers using stern mounts.

UNDERCARRIAGE

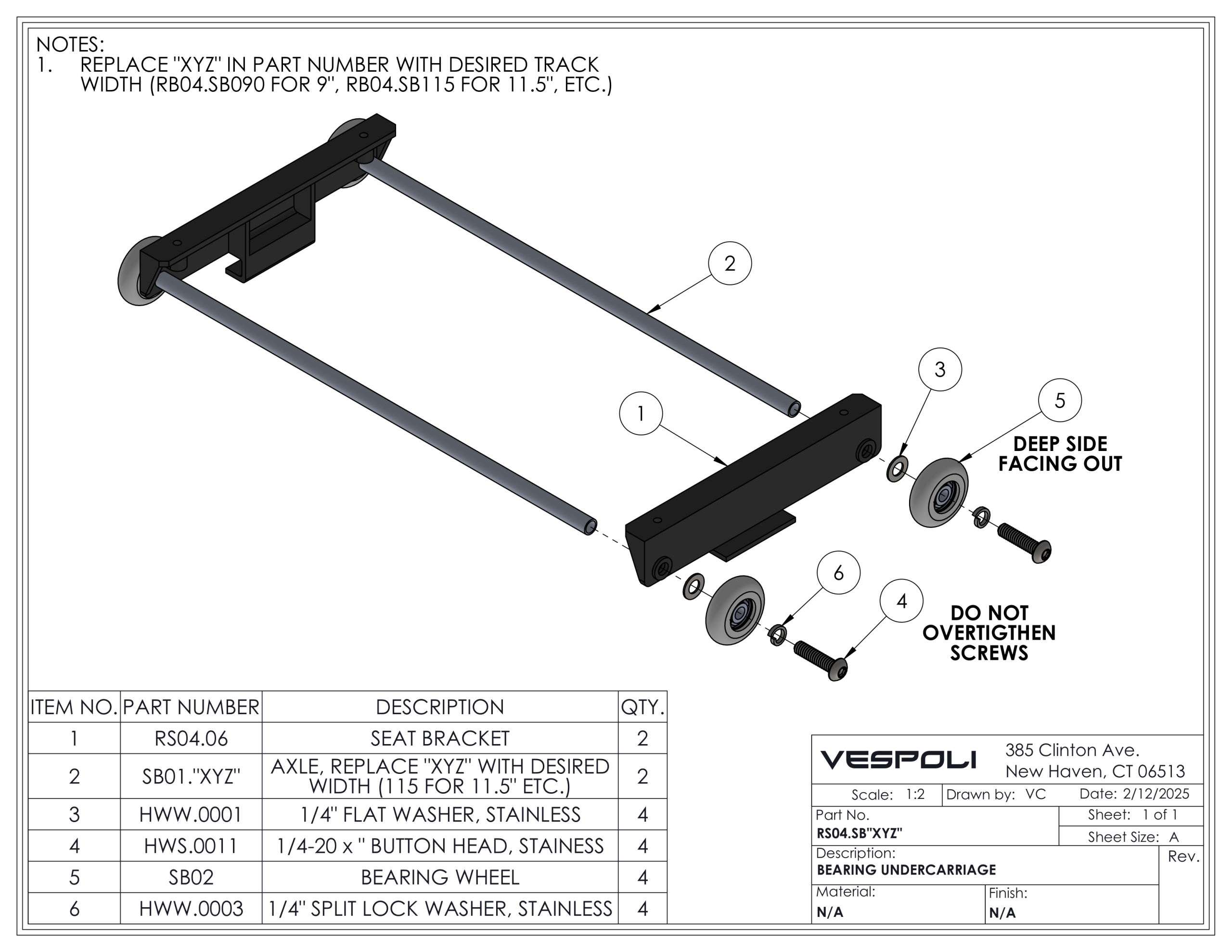

All boats undercarriage assembly

This diagram shows the proper assembly of the undercarriage used in all VHP boats.
